Products > Shower/Tub Trim > 2-way Diverter Valve/Volume Control with Shut Off
  • Zoom


Required Item

This Item Requires Purchase of the Following Item(s)

Must choose one. Multiple options.

  • T632-TRIM-
    Contempo Lever with Round Escutcheon Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20687 / J-20688 / J-20689)

  • T688-TRIM-
    Astor Ball Cross Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T462-TRIM-
    Contempo Hub Base Cross Handle with Round Escutcheon Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • TSQ459-TRIM-
    Contempo Hub Base Lever with Square Escutcheon Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

Features

  • J-20686 way diverter consists of inlet for mixed water & two outlets.
  • Valve has integral volume control. For example, shower & handshower has independent control, shower & body spray has independent control.
  • Two-way valve operation is single output only flow to "C" port lever in left position, "Off" lever centered flow to "B" port lever in right position
  • ½" NPT male fittings
  • Ceramic cartridge
  • 5" long stem & escutcheon nipple for deep wall installations can be cut to length
  • 12 GPM flow @ 60 PSI

NOTE: TWO WAY DIVERTER CAN BE USED AS A SINGLE OUTLET AND VOLUME CONTROL BY CAPPING B OR C PORT.

  • T688-TRIM-
    Astor Ball Cross Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T686-TRIM-
    Astor Hex Cross Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T685-TRIM-
    Astor Hex Lever Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

  • T684-TRIM-
    Astor Smooth Lever Trim for Exacto Volume Controls and Diverters (J-VC34 / J-VC12 / J-20682 / J-20686 / J-20688 / J-20687 / J-20689)

    • J-20686 way diverter consists of inlet for mixed water & two outlets.
    • Valve has integral volume control. For example, shower & handshower has independent control, shower & body spray has independent control.
    • Two-way valve operation is single output only flow to "C" port lever in left position, "Off" lever centered flow to "B" port lever in right position
    • ½" NPT male fittings
    • Ceramic cartridge
    • 5" long stem & escutcheon nipple for deep wall installations can be cut to length
    • 12 GPM flow @ 60 PSI

    NOTE: TWO WAY DIVERTER CAN BE USED AS A SINGLE OUTLET AND VOLUME CONTROL BY CAPPING B OR C PORT.

Downloads
InfoDownloads:
.DWG files will be loaded onto the website shortly. In the meantime, please contact marketing@jaclo.com if you need a dwg file.

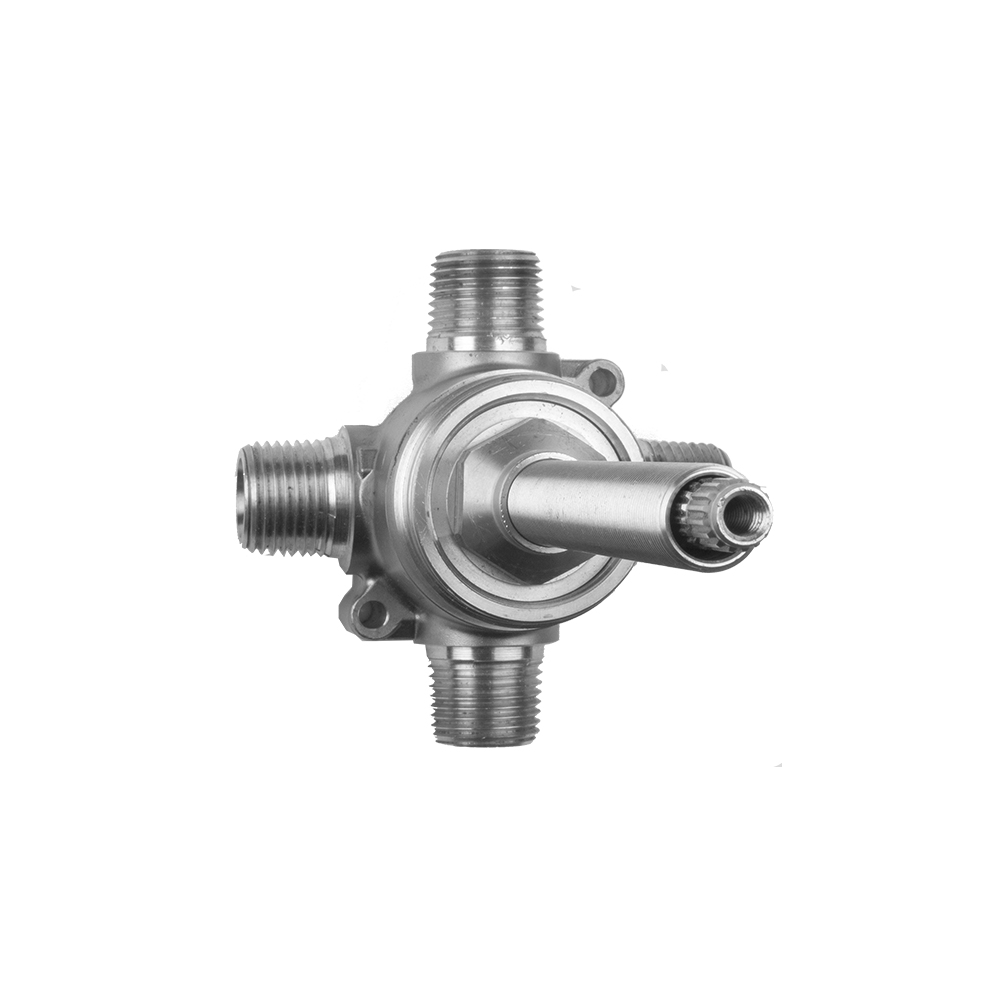

2-way Diverter Valve/Volume Control with Shut Off

Model Number: J-20686
Finish: N/A
Estimated List Price: $285

InfoEstimated List Price

The price listed is not necessarily the purchase price.

  • Retail: Price shown is suggested retail price. Please contact your local JACLO dealer for retail pricing.
  • Hospitality: For larger quantity pricing, contact hospitality@jaclo.com.

2-way Diverter Valve/Volume Control with Shut Off

Model Number: J-20686
Finish: N/A
Estimated List Price: $285
